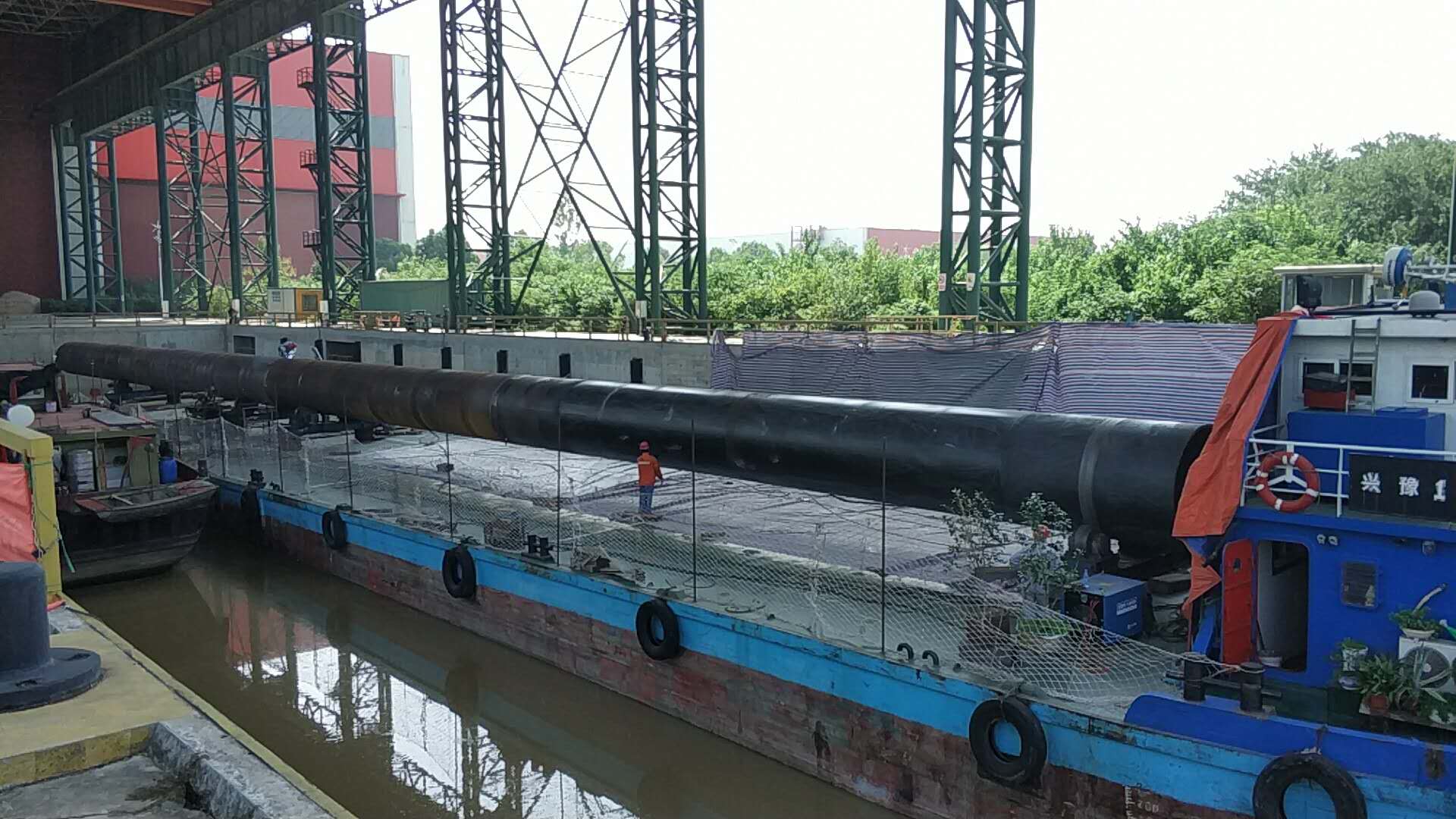

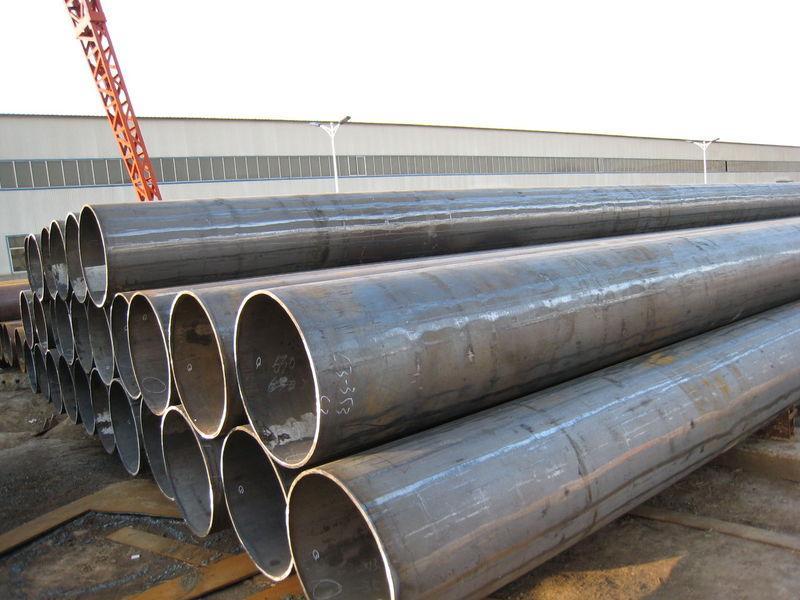

JCOE直缝埋弧焊接钢管JCOE LSAW Steel Pipe | ||||||||||||
管径 Pipe O.D | 壁厚 W.T.(min) | 壁厚W.T.(max)(mm) | 长度 Length(m) | |||||||||
最小屈服度Min.Yield Strength (Mpa) | ||||||||||||
In. | mm | 245 (B) | 290 (X42) | 360 (AX52) | 415 (X60) | 450 (X65) | 485 (X70) | 555 (X80) | 625 (X90) | 690 (X100) | ||
16 | 406 | 7 | 30 | 28 | 25 | 23 | 22 | 21 | 19 | 18 | 17 | 6.0-12.15 |
18 | 457 | 7 | 32 | 29 | 26 | 24 | 23 | 22 | 21 | 19 | 18 | 6.0-12.15 |
20 | 508 | 7 | 35 | 32 | 29 | 27 | 26 | 25 | 23 | 21 | 20 | 6.0-12.15 |
22 | 559 | 8 | 36 | 33 | 30 | 27 | 26 | 25 | 23 | 22 | 21 | 6.0-12.15 |
24 | 610 | 8 | 38 | 35 | 31 | 29 | 28 | 27 | 25 | 23 | 22 | 6.0-12.15 |
26 | 660 | 8 | 38 | 35 | 31 | 29 | 28 | 27 | 25 | 23 | 22 | 6.0-12.15 |
28 | 711 | 8 | 40 | 37 | 33 | 31 | 29 | 28 | 26 | 24 | 23 | 6.0-12.15 |
30 | 762 | 8 | 40 | 37 | 33 | 31 | 29 | 28 | 26 | 24 | 23 | 6.0-12.15 |
32 | 813 | 9 | 42 | 39 | 35 | 32 | 31 | 29 | 27 | 26 | 24 | 6.0-12.15 |
34 | 864 | 9 | 44 | 40 | 36 | 34 | 33 | 32 | 29 | 27 | 26 | 6.0-12.15 |
36 | 914 | 9 | 45 | 41 | 37 | 34 | 33 | 32 | 29 | 27 | 26 | 6.0-12.15 |
38 | 965 | 10 | 46 | 42 | 38 | 35 | 34 | 32 | 30 | 28 | 26 | 6.0-12.15 |
40 | 1016 | 10 | 48 | 44 | 40 | 37 | 35 | 34 | 31 | 29 | 27 | 6.0-12.15 |
42 | 1067 | 10 | 48 | 44 | 40 | 37 | 35 | 34 | 31 | 29 | 27 | 6.0-12.15 |
44 | 1118 | 10 | 49 | 45 | 40 | 37 | 36 | 34 | 32 | 30 | 28 | 6.0-12.15 |
46 | 1168 | 10 | 49 | 45 | 40 | 37 | 36 | 34 | 32 | 30 | 28 | 6.0-12.15 |
48 | 1219 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
52 | 1321 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
56 | 1422 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
60 | 1524 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
64 | 1626 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
JCOE直缝埋弧焊接钢管JCOE LSAW Steel Pipe | ||||||||||||
管径 Pipe O.D | 壁厚 W.T.(min) | 壁厚W.T.(max)(mm) | 长度 Length(m) | |||||||||
最小屈服度Min.Yield Strength (Mpa) | ||||||||||||
In. | mm | 245 (B) | 290 (X42) | 360 (AX52) | 415 (X60) | 450 (X65) | 485 (X70) | 555 (X80) | 625 (X90) | 690 (X100) | ||
16 | 406 | 7 | 30 | 28 | 25 | 23 | 22 | 21 | 19 | 18 | 17 | 6.0-12.15 |
18 | 457 | 7 | 32 | 29 | 26 | 24 | 23 | 22 | 21 | 19 | 18 | 6.0-12.15 |
20 | 508 | 7 | 35 | 32 | 29 | 27 | 26 | 25 | 23 | 21 | 20 | 6.0-12.15 |
22 | 559 | 8 | 36 | 33 | 30 | 27 | 26 | 25 | 23 | 22 | 21 | 6.0-12.15 |
24 | 610 | 8 | 38 | 35 | 31 | 29 | 28 | 27 | 25 | 23 | 22 | 6.0-12.15 |
26 | 660 | 8 | 38 | 35 | 31 | 29 | 28 | 27 | 25 | 23 | 22 | 6.0-12.15 |
28 | 711 | 8 | 40 | 37 | 33 | 31 | 29 | 28 | 26 | 24 | 23 | 6.0-12.15 |
30 | 762 | 8 | 40 | 37 | 33 | 31 | 29 | 28 | 26 | 24 | 23 | 6.0-12.15 |
32 | 813 | 9 | 42 | 39 | 35 | 32 | 31 | 29 | 27 | 26 | 24 | 6.0-12.15 |
34 | 864 | 9 | 44 | 40 | 36 | 34 | 33 | 32 | 29 | 27 | 26 | 6.0-12.15 |
36 | 914 | 9 | 45 | 41 | 37 | 34 | 33 | 32 | 29 | 27 | 26 | 6.0-12.15 |
38 | 965 | 10 | 46 | 42 | 38 | 35 | 34 | 32 | 30 | 28 | 26 | 6.0-12.15 |
40 | 1016 | 10 | 48 | 44 | 40 | 37 | 35 | 34 | 31 | 29 | 27 | 6.0-12.15 |
42 | 1067 | 10 | 48 | 44 | 40 | 37 | 35 | 34 | 31 | 29 | 27 | 6.0-12.15 |
44 | 1118 | 10 | 49 | 45 | 40 | 37 | 36 | 34 | 32 | 30 | 28 | 6.0-12.15 |
46 | 1168 | 10 | 49 | 45 | 40 | 37 | 36 | 34 | 32 | 30 | 28 | 6.0-12.15 |
48 | 1219 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
52 | 1321 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
56 | 1422 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
60 | 1524 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
64 | 1626 | 12 | 50 | 46 | 41 | 38 | 36 | 35 | 32 | 30 | 29 | 6.0-12.15 |
